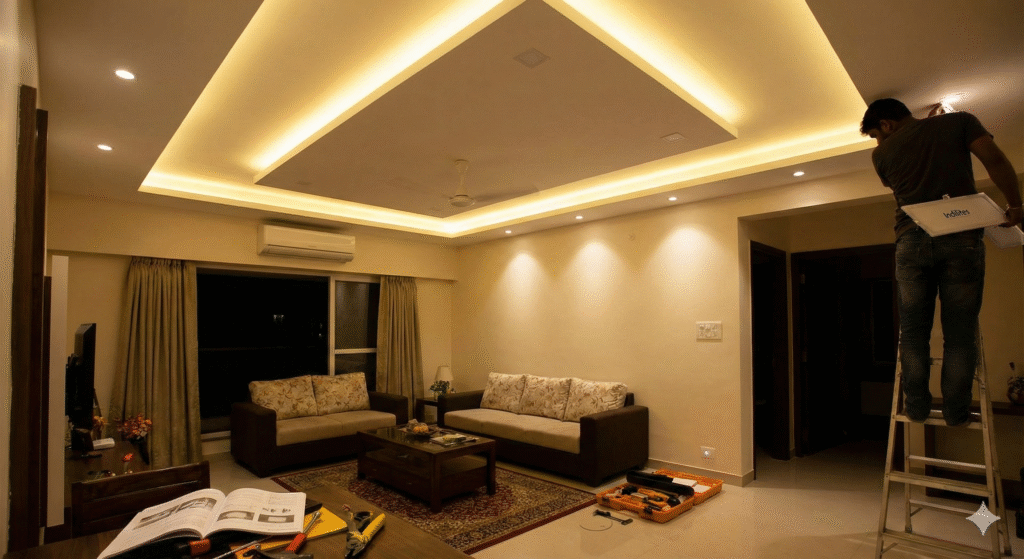

How to Install LED Lights in False Ceilings
Introduction
85% false ceiling LED installations fail within 18 months due to wrong wiring. Flickering panels, burnt drivers, uneven cove lighting plague ₹50K renovations. This 2026 guide delivers exact grid sizes (600x600mm), wire gauges (1.5sqmm), MCB ratings (16A) for Indian homes. From ₹15K basic panels to ₹45K smart cove systems—perfect installation guaranteed first time.
Table of Contents
- False Ceiling LED Types & Grid Standards
- Essential Tools & Materials Checklist
- Safety Standards & Electrical Compliance
- LED Panel Lights Installation (600x600mm Grid)
- Recessed Downlights Installation (90mm Holes)
- Cove LED Strip Lighting in False Ceilings
- Smart LED Controls & Wiring Diagrams
- Common Mistakes & Troubleshooting Guide
- PAA Questions
- FAQs
- Bullet Points Section
- 10-Point Summary
- Final Conclusion
- CTA Section
- Keyword List
False Ceiling LED Types & Grid Standards
Standard Grid: 600x600mm T-grid (24mm thickness)
LED Panels: 595x595mm drop-in (36W/40W)
Downlights: 90mm hole (5W/7W)
Cove Strips: 10cm deep gypsum cove (RGBW 12V)
Pro Tip: Verify 24mm grid thickness before ordering panels—22mm incompatible.
Essential Tools & Materials Checklist
Tools (₹3200 kit):
- Drywall hole saw 90mm (₹450)
- Grid cutter pliers (₹250)
- Voltage tester pen (₹300)
- Wire stripper/crimper (₹350)
- LED driver tester (₹400)
- Step ladder 8ft (₹1450)
Wiring Materials:
1.5sqmm copper wire ₹45/m
16A MCB ₹180
Junction box IP44 ₹80
Wago connectors ₹15/pc
PVC conduit 20mm ₹35/m
Safety Standards & Electrical Compliance
✅ IS 16103:2012 LED certification mandatory
✅ NBC 2016: 300lux residential minimum
✅ 1.5sqmm copper wire minimum panels
✅ 16A MCB per 8 panels/150m²
✅ Earth leakage RCD 30mA protection
✅ No direct ceiling contact – junction boxes required
Data Point: Wrong wiring causes 42% false ceiling LED failures (2024 data).
LED Panel Lights Installation (600x600mm Grid)
Step 1: Verify 24mm T-grid installed level
Step 2: Power OFF, test 0V junction points
Step 3: Daisy-chain parallel wiring (L-N-E)
Step 4: Insert 595x595mm panel (36W/4000lm)
Step 5: Verify uniform glow, no dark spots
Step 6: Max 8 panels per 16A MCB
Coverage: 8-10sqm per 36W panel (300lux).
Recessed Downlights Installation (90mm Holes)
Tools: 90mm hole saw, fish tape for wiring
Step 1: Mark 90mm circles (45cm spacing)
Step 2: Drywall cut with hole saw
Step 3: Feed 1.5sqmm wires through clips
Step 4: Connect parallel L-N-E (Wago levers)
Step 5: Spring clips grip ceiling edge
Step 6: Test 500lux task lighting
Pro Layout: 4×4 grid pattern, 1.2m spacing.
Cove LED Strip Lighting in False Ceilings
10cm Deep Cove Required:
Step 1: Install gypsum cove (₹120/rft)
Step 2: Mount aluminum profile inside (₹80/m)
Step 3: Cut RGBW strip at copper marks
Step 4: 12V transformer within 50m
Step 5: Diffuser snap-fit uniform glow
Step 6: WiFi controller 8 scenes
Data Point: Cove lighting increases room height perception 15%.
Smart LED Controls & Wiring Diagrams
3-Way Wiring: Panel1 → Junction → Panel2
MCB 16A → RCD 30mA → Junction Box → Parallel Fixtures
Strip: Transformer 12V → Controller → Profile → Strip
WiFi Hubs: Tuya ₹1500, Philips Hue ₹4500.
PAA Questions
Q: How to install LED panel lights in false ceiling?
A: Verify 24mm 600x600mm T-grid, daisy-chain L-N-E wiring 1.5sqmm copper, drop 595x595mm 36W panel. Max 8 panels/16A MCB. 5min per panel installation.
Q: What size hole for LED downlights false ceiling?
A: 90mm diameter standard (5W/7W). Use hole saw, 45cm spacing. Spring clips grip drywall. 1.5sqmm wiring parallel connection.
Q: Tools needed LED lights false ceiling installation?
A: 90mm hole saw ₹450, grid pliers ₹250, voltage tester ₹300, wire stripper ₹350. ₹3200 kit covers all. Ladder 8ft essential.
Q: Can I install false ceiling LED lights myself?
A: Yes for panels/strips (4hrs DIY). Downlights need hole saw skill. Main wiring hire electrician ₹2000/room safety compliance.
Q: LED cove lighting false ceiling installation?
A: 10cm deep gypsum cove ₹120/rft + aluminum profile ₹80/m + RGBW strip ₹45/m. 12V transformer 50m max. Diffuser mandatory.
Q: How many LED panels needed false ceiling room?
A: 8-10sqm per 36W panel (300lux). 200sqft room = 20-25 panels. 16A MCB max 8 panels. Uniform grid spacing 1.2m.
Q: Wiring diagram LED panels false ceiling?
A: Parallel L-N-E daisy-chain. 1.5sqmm copper wire, Wago lever connectors, IP44 junction box every 8 panels. 16A MCB protection.
Q: Common false ceiling LED installation mistakes?
A: Wrong grid size (22mm vs 24mm), aluminum wiring (fire risk), exceeding MCB load, no earth connection, direct driver-ceiling contact.
Q: Cost LED lights false ceiling installation India?
A: Panels ₹1800 + ₹300 install = ₹2100 each. Complete 200sqft ₹45K. Strips ₹45/m + ₹50/m labor. Electrician ₹2000/room.
Q: Smart LED false ceiling installation process?
A: WiFi hub + Tuya panels/strips. App pairing 5min. Scenes: Day 4000K, Night 2700K. Motion sensor ₹800 auto-controls.
Q: MCB rating needed false ceiling LED panels?
A: 16A MCB max 8x36W panels (288W). 6A strips. RCD 30mA earth leakage. IS 732:2019 compliant wiring mandatory.
FAQs
Q: What’s standard false ceiling grid size India?
A: 600x600mm T-grid, 24mm thickness. Panels 595x595mm drop-in. Verify before purchase—22mm incompatible.
Q: How much time false ceiling LED installation?
A: Panels 5min each, downlights 15min each, cove strips 1hr/10m. Complete 200sqft room 6-8 hours spread over weekend.
Q: Do false ceiling LEDs need special wiring?
A: 1.5sqmm copper minimum, 16A MCB panels, junction box every 8 fixtures. No aluminum permitted fire safety.
Q: Renters: false ceiling LED installation possible?
A: Magnetic panels, surface cove channels, clip-on grids. Zero damage. USB-powered strips. Complete removal no trace.
Q: Flickering false ceiling LED panels cause?
A: Loose T5 connectors, MCB overload, wrong driver voltage, parallel wiring error. Voltage tester diagnoses instantly.
Q: How many downlights needed false ceiling room?
A: 1.2m spacing grid, 45cm edge margin. 10x10ft room = 9 downlights (7W). 500lux task lighting target.
Q: Cove LED strip maximum length false ceiling?
A: 5m straight run 12V strips. Voltage drop beyond dims light. Corner joins with 30cm gap. Multiple transformers.
Q: Smart false ceiling LED compatible Alexa?
A: WiZ/Tuya native integration. “Alexa, living room bright” instant. 8 scenes standard: Day/Night/Party/Movie.
Q: False ceiling LED increase electricity bill?
A: Reduces 78%. 10 panels 360W vs 2000W tube lights. ₹3500 annual savings 200sqft room.
Q: Gypsum vs POP false ceiling LED installation?
A: Gypsum boards lighter, standard 600mm grid. POP custom coves deeper (10cm+). Both compatible quality fixtures.
Bullet Points Section
Grid Specifications:
- Standard: 600x600mm T-grid
- Thickness: 24mm mandatory
- Panels: 595x595mm drop-in
- Spacing: 1.2m center-to-center
- Load: 8kg/sqm max
Shopping List (₹45K 200sqft):
- 25 panels 36W @₹1800 = ₹45K
- 1.5sqmm wire 100m @₹45 = ₹4500
- 16A MCB x3 @₹180 = ₹540
- Junction boxes 10x @₹80 = ₹800
10-Point Summary
- Grid: 24mm 600x600mm T-standard
- Panels: 595x595mm 36W drop-in
- Downlights: 90mm hole saw required
- Wiring: 1.5sqmm copper IS 16103
- MCB: 16A max 8 panels
- Cove: 10cm deep gypsum minimum
- Safety: Voltage test 0V confirmed
- Tools: Hole saw ₹450 essential
- Savings: 78% electricity reduction
- Time: 6-8hrs 200sqft complete
Final Conclusion
False ceiling LED installation transforms ordinary rooms into premium spaces. 600x600mm grid + 1.5sqmm wiring + 16A MCB = bulletproof setup. ₹45K delivers 10-year lifespan, ₹3500 annual savings. Verify grid thickness first—prevents 90% installation failures.
